| Tempat asal: | WUXI, WENZHOU |
|---|---|
| Nama merek: | XINFUTIAN |
| Sertifikasi: | BV,SGS |
| Nomor model: | 316l, 304 |
| Kuantitas min Order: | 1 TON |
| Harga: | Negotiation |
| Kemasan rincian: | kantong plastik |
| Waktu pengiriman: | 5-7 hari kerja |
| Syarat-syarat pembayaran: | D / A, L / C, T / T |
| Menyediakan kemampuan: | 1000 ton/bulan |
| Mengetik: | Lasan | Ketebalan: | 0.4-30mm, 0.5-100mm, 0.25-2.5mm, 1mm-40mm, 0.8--2mm |
|---|---|---|---|
| Panjang: | 6 Meter atau sesuai permintaan pelanggan | Teknik: | Cold Rolled, Hot Rolled |
| Bahan: | 200 Series / 300 Series / 400series | Sertifikasi: | ISO, SGS, BV, CE, ISO / SGS |
| Bentuk: | Bagian bulat, slot, bulat / persegi / persegi panjang / oval dll | ||
| Cahaya Tinggi: | pipa stainless steel persegi panjang,pipa stainless steel duplex |
||

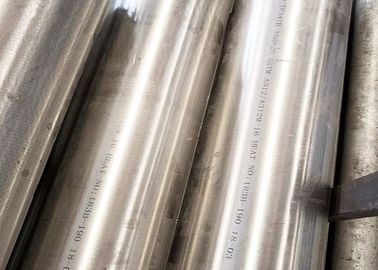

Pipa Stainless Steel Brushed Stainless Steel Diameter Besar 316 Tebal
Ukuran Pipa Normal | Diameter luar | Ketebalan Dinding Normal | |||||||
NPS | DN | OD | SCH10s | SCH40s | STD | SCH40 | XS | SCH80s | |
1/8 | 6 | 10.3 | - | 1.24 | 1.73 | 1.73 | 1.73 | 2.41 | 2.41 |
1/4 | 8 | 13.7 | - | 1.65 | 2.24 | 2.24 | 2.24 | 3.02 | 3.02 |
3/8 | 10 | 17.1 | - | 1.65 | 2.31 | 2.31 | 2.31 | 3.2 | 3.2 |
1/2 | 15 | 21.3 | 1.65 | 2.11 | 2.77 | 2.77 | 2.77 | 3.73 | 3.73 |
3/4 | 20 | 26.7 | 1.65 | 2.11 | 2.87 | 2.87 | 2.87 | 3.91 | 3.91 |
1 | 25 | 33.4 | 1.65 | 2.77 | 3.38 | 3.38 | 3.38 | 4.55 | 4.55 |
1 1/4 | 32 | 42.2 | 1.65 | 2.77 | 3.53 | 3.53 | 3.53 | 4.85 | 4.85 |
1 1/2 | 40 | 48.3 | 1.65 | 2.77 | 3.68 | 3.68 | 3.68 | 5.08 | 5.08 |
2 | 50 | 60.3 | 1.65 | 2.77 | 3.91 | 3.91 | 3.91 | 5.54 | 5.54 |
2 1/2 | 65 | 73 | 2.11 | 3.05 | 5.16 | 5.16 | 5.16 | 7.01 | 7.01 |
3 | 80 | 88.9 | 2.11 | 3.05 | 5.49 | 5.49 | 5.49 | 7.62 | 7.62 |
3 1/2 | 90 | 101.6 | 2.11 | 3.05 | 5.74 | 5.74 | 5.74 | 8.08 | 8.08 |
4 | 100 | 114.3 | 2.11 | 3.05 | 6.02 | 6.02 | 6.02 | 8.56 | 8.56 |
5 | 125 | 141.3 | 2.77 | 3.4 | 6.55 | 6.55 | 6.55 | 9.53 | 9.53 |
6 | 150 | 168.3 | 2.77 | 3.4 | 7.11 | 7.11 | 7.11 | 10.97 | 10.97 |
1. Kelas: TP304 TP304L TP316L TP317L TP310S 904L 2205 2507
2. Ukuran: 19-720MM
3. Standar: ASTM A312 ASTM A213 ASTM A269
4. Sertifikasi: ISO9001, SGS
nama Produk | Pipa Las Stainless Steel |
Standar | ASTM A312 ASTM A213 ASTM A269 |
Bahan | Besi tahan karat |
Kelas | TP304 TP304L TP316LTP316 Ti TP317L TP310S 904L 2205 2507 |
Ukuran | 19-720MM |
Brande | "DONGFENG" |
Teknologi | Penggulungan panas atau gambar dingin |
Bekas | Petroleurn / Kimia / Natgas / Bangunan |
Paket
