rincian produk

Rumah Produk

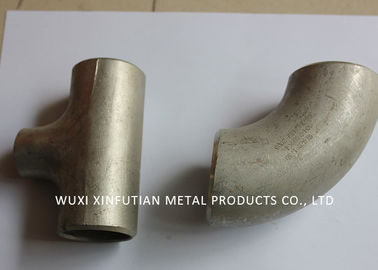

ASME B16.9 Stainless Steel Pipe Fittings Butt - Dilas Pipa Siku Kelas 304

Nama merek:	XINFUTIAN
Nomor Model:	316, 304, 316L
Moq:	10 komputer PC
harga:	dapat dinegosiasikan
Ketentuan Pembayaran:	T/T, L/C, Western Union
Kemampuan Penyediaan:	1000 PCS / Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Zhejiang, Cina

Sertifikasi:

BV,TUV,DNV,SGS,CE,LR.

Technics:

Ditempa

Mengetik:

Elbow / Reducer / Tee / Bend

Nomor model:

316,304,316L

Koneksi:

Pengelasan

Kepala kode:

Bulat

Permukaan:

Pengawetan dan pemolesan

Kualitas:

Perdana

Kemasan rincian:

Kayu Karton dan Plastic Bag masing-masing bagus.

Menyediakan kemampuan:

1000 PCS / Bulan

Menyoroti:

fitting tabung stainless steel las

flange fitting pipa baja stainless

Deskripsi Produk

Elbow Tee Reducer Pipe Fittings Stainless Steel Elbow ASME B16.9

Butt-welded Pipe Elbow Production Range

Diameter Luar: Seamless Elbow (1/2 ″ ~ 24 ″), ERW / Welded / Fabricated Elbow (1/2 ″ ~ 48 ″)
Ketebalan Dinding: 3mm– 40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Radius Lentur: R = 1D - 10D, 15D, 20D
Sudut Produk: 5 ° - 180 ° Siku, 90 ° dan 45 ° Siku Radius Panjang, Radius Panjang 180 ° , Siku Radius Pendek dan Pengembalian
Kelas Produksi: Baja Tahan Karat, Baja Paduan, Dupleks, Paduan Nikel, Baja Suhu Rendah, Baja Karbon, Cupronikel

Standar Manufaktur

ASME: ANSIB16.9, ANSI B16.28, MSS-SP-43
DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN: EN10253-1, EN10253-2
ASTM A403 - ASME SA403 - Spesifikasi Standar untuk Fitting Pipa Stainless Steel Austenitic Tempa
ASME B16.9 - Pabrik Tempa Fittings Butt-weld
ASME B16.25 - Ujung Butt-pengelasan
ASME B16.28 - Siku Baja Tempa Pendek dan Pengelasan Butt-pengelasan
MSSSP-43 - Fitting Butt-Welding Tempa dan Fabrikasi untuk Tekanan Rendah, Aplikasi Tahan Korosi

Bahan Kelas Siku Pipa

Siku stainless steel; ASTMA403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Siku Baja Karbon: ASTMA 234 WPB, WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Siku Baja Karbon Suhu Rendah: ASTM A420 WPL3, A420 WPL6
Baja Paduan Siku: ASTM / ASME A / SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Duplex Steel Elbow: ASTMA 815, ASME SA 815 UNS NO S31803, S32205.
Nikel Paduan Siku: ASTM / ASME SB 336 UNS 2200 (NICKEL 200), UNS 2201 (NICKEL 201), UNS 4400 (MONEL400), UNS 8020 (ALLOY 20/20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL600 ), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOYC 276)

Tidak	Kelas	Kimia Composotion%
		C	Cr	Ni	M N	P	S	Mo	Si	Cu	N
304	0Cr18Ni9	≤0.07	17.00-19.00	8.00-10,00	≤2.00	≤0.035	≤0.030	-	≤1,00	-	-
304LN	00Cr18Ni10N	≤0.030	17.00-19.00	8,50-11,50	≤2.00	≤0.035	≤0.030	-	≤1,00	-	0,12-0,22
309S	0Cr23Ni13	≤0.08	22,00-24,00	12.00-15.00	≤2.00	≤0.035	≤0.030	-	≤1,00	-	-
310S	0Cr25Ni20	≤0.08	24.00-26.00	19,00-22,00	≤2.00	≤0.035	≤0.030	-	≤1,00	-	-
316	0Cr17Ni12Mo2	≤0.08	16.00-18.50	10.00-14.00	≤2.00	≤0.035	≤0.030	2,00-3,00	≤1,00	-	-
	1Cr18Ni12Mo2Ti6)	≤0.12	16.00-19.00	11.00-14.00	≤2.00	≤0.035	≤0.030	1,80-2,50	≤1,00	-	-
	0Cr18Ni12Mo2Ti	≤0.08	16.00-19.00	11.00-14.00	≤2.00	≤0.035	≤0.030	1,80-2,50	≤1,00	-	-
316L	00Cr17Ni14Mo2	≤0.030	16.00-18.00	12.00-15.00	≤2.00	≤0.035	≤0.030	2,00-3,00	≤1,00	-	-
316N	0Cr17Ni12Mo2N	≤0.08	16.00-18.00	10.00-14.00	≤2.00	≤0.035	≤0.030	2,00-3,00	≤1,00	-	0,10-0,22

Produk utama kami

Tee, Crosses, LR & SR Elbows (180 °, 90 °, 45 °), Reducers (Concentric atau Eccentric), Stub Ends, End Caps, Socket & Threaded Couplings dalam bahan dari stainless steel, baja karbon, baja paduan dan baja khusus lainnya. Ukurannya dari 1/2 "(DN15) hingga 100 '' (DN2500), tebal dinding mencapai 100mm.
